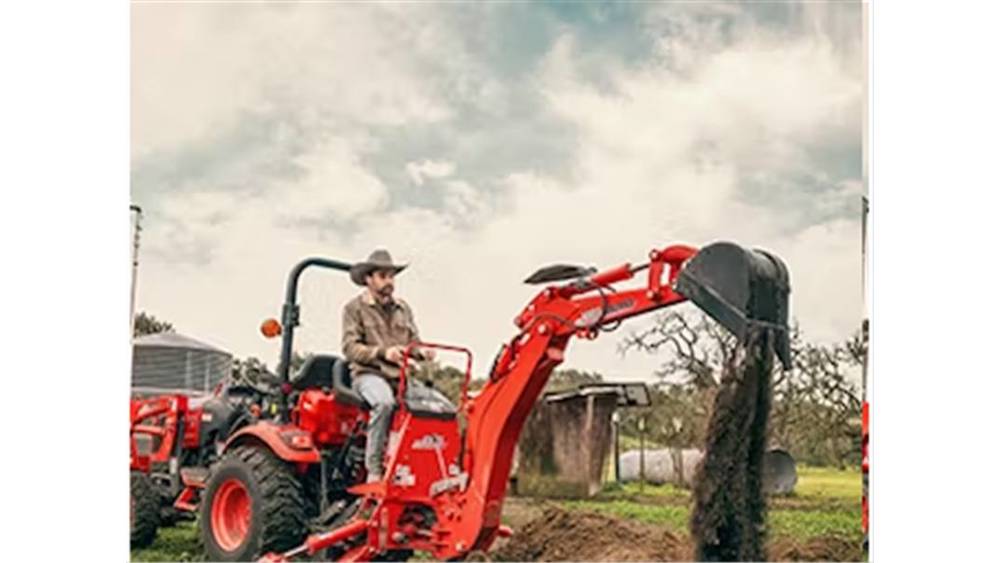

KIOTI backhoes deliver trenching up to 94” deep with a bucket dig force of up to 3,748 pounds. The backhoes feature sub-frame mounting, self-contained hydraulics, two-lever hydraulic controls, hydraulic stabilizers, transport lock and a variety of buckets. Now go dig.
Specifications
- Compatibility: Fits the CX2510, CX2510 HST and CX2510 HST Cab. Specifications may vary depending on tractor model and are subject to change without notification. Tractors must be equipped with ROPS and seat belt that will provide greater safety.
- Digging Depth: 76.30 in (1,940 mm)
- Reach: 113.10 in (2,875 mm)
- Loading Height: 63.60 in (1,615 mm)
- Maximum Leveling Angle: 10 °
- Swing Arc: 180 °
- Transport Height: 77.20 in (1,960 mm)
- Transport Overhang: 43.50 in (1,105 mm)
- Bucket Rotation: 180 °
- Stabilizer Spread Down: 68.70 in (1,745 mm)
- Stabilizer Spread Up: 46.40 in (1,105 mm)
- Weight: 1,012 lb (459 kg)
- Digging Force Bucket: 2,817.50 lb (1,278 kg)
- Digging Force Dipperstick: 1,748 lb (793 kg)
- Operating Pressure: 2,466 psi (170 bar)
Additional information
| CHASSIS | Dig Depth 76.30 in |
|---|
