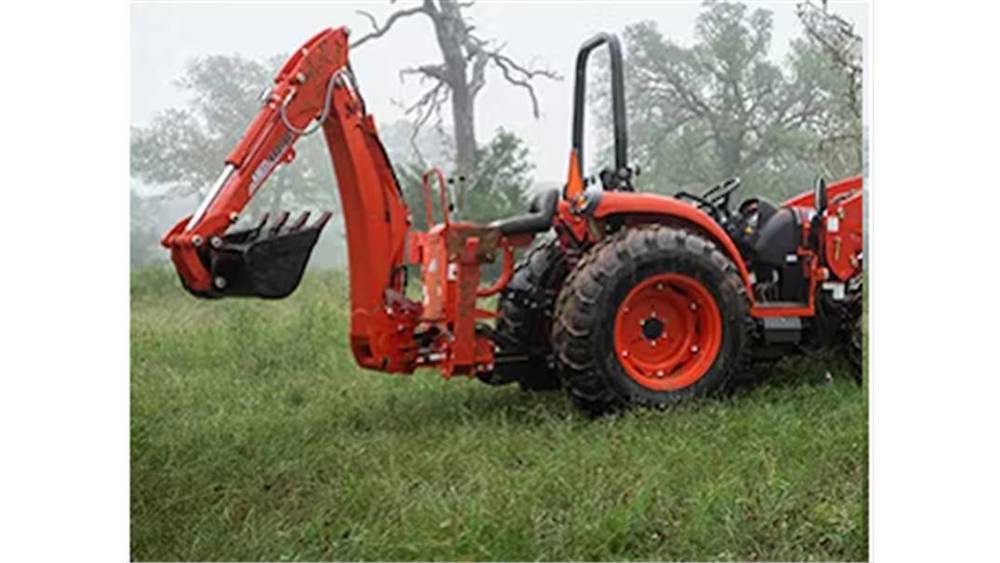

2025 KIOTI Backhoes KB2485
$0.00
KIOTI backhoes deliver trenching up to 94” deep with a bucket dig force of up to 3,748 pounds. The backhoes feature sub-frame mounting, self-contained hydraulics, two-lever hydraulic controls, hydraulic stabilizers, transport lock and a variety of buckets. Now go dig.
Specifications
- Compatibility: Fits DK20, DK20SE, NS, NX, and RX6620/RX6620C/RX6620P/RX6620PC Series tractors.
- Digging Depth: 94.40 in (2,400 mm)
- Reach: 136.10 in (3,460 mm)
- Loading Height: 80.30 in (2,040 mm)
- Maximum Leveling Angle: 10°
- Swing Arc: 180 °
- Transport Height: 92.90 in (2,360 mm)
- Transport Overhang: 50.40 in (1,280 mm)
- Bucket Rotation: 180 °
- Stabilizer Spread Down: 68.70 (1,745 mm)
- Stabilizer Spread Up: 46.40 in (1,105 mm)
- Departure Angle: 21°
- Weight: 1,102 lb (500 kg)
- Digging Force Bucket: 3,748 lb (1,700 kg)
- Digging Force Dipperstick: 2,205 lb (1,000 kg)
- Operating Pressure: 2,466 psi (170 bar)
Additional information
| CHASSIS | Dig Depth 94.40 in |
|---|
