2025 KIOTI Backhoes KB2475L
$0.00

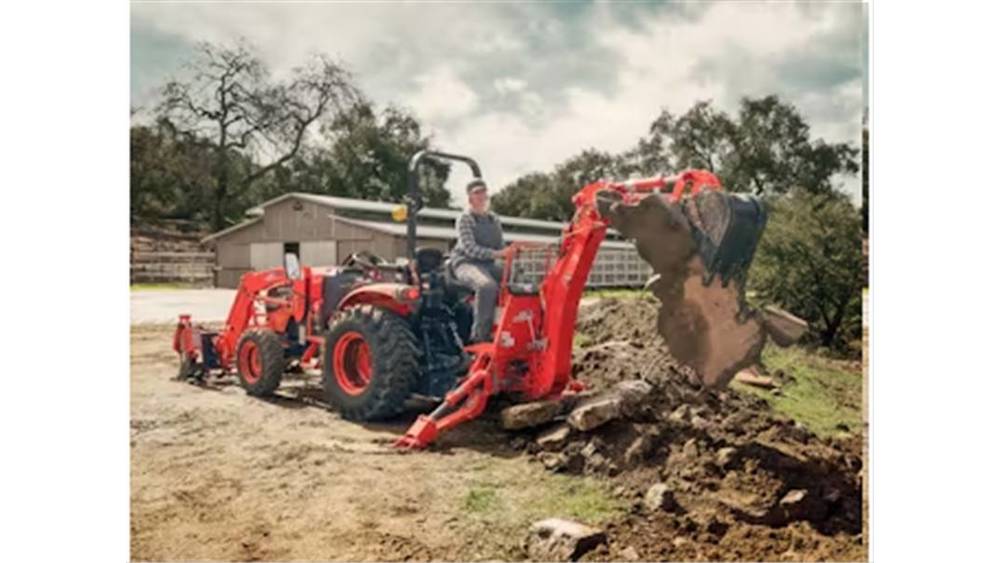

KIOTI backhoes deliver trenching up to 94” deep with a bucket dig force of up to 3,748 pounds. The backhoes feature sub-frame mounting, self-contained hydraulics, two-lever hydraulic controls, hydraulic stabilizers, transport lock and a variety of buckets. Now go dig.
Specifications
- Compatibility: Fits the CK20 Series, CK20SE Series. *Specifications may vary with tractor model, front axle configurations, tire size option and type of attachment and are subject to change without notification.
- Digging Depth: 89.70 in (2,280 mm)
- Reach: 125.10 in (3,180 mm)
- Loading Height: 72.40 in (1,840 mm)
- Maximum Leveling Angle: 10 °
- Swing Arc: 180 °
- Transport Height: 83.50 in (2,120 mm)
- Transport Overhang: 49 in (1,245 mm)
- Bucket Rotation: 180°
- Stabilizer Spread Down: 68.70 in (1,745 mm)
- Stabilizer Spread Up: 46.40 in (1,105 mm)
- Departure Angle: 21 °
- Weight: 880 lb (399 kg)
- Digging Force Bucket: 2,817 lb (1,278 kg)
- Digging Force Dipperstick: 2,105 lb (955 kg)
- Operating Pressure: 2,466 psi (170 bar)
Additional information
| CHASSIS | Dig Depth 89.70 in |
|---|
