2025 Kubota RA110CR
$0.00

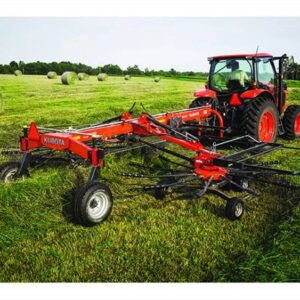

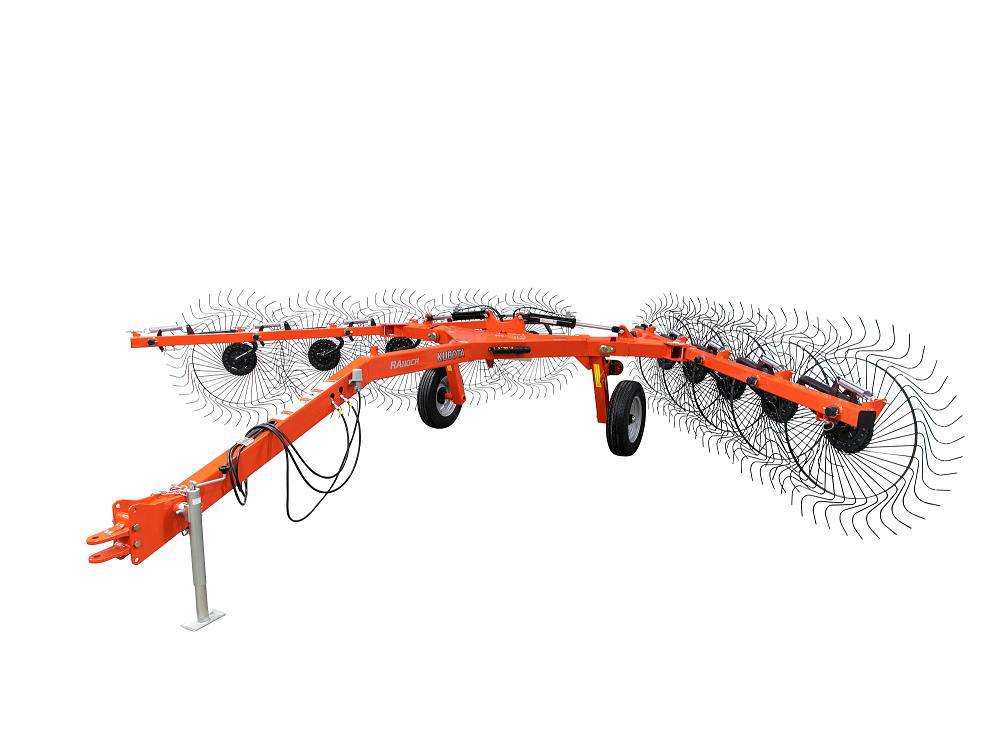

Not only is the Kubota RA110CR well-suited for handling dry hay, it features a 12-height adjustable drawbar to make sure you’re getting the best working angle for your needs. The rake is 21’ 6” long and spans a 20’ 4” working width, allowing for increased coverage of your windrows and makes sure you’re operating at peak potential. Individual rake wheel suspension will take you even further by following rough ground contour in uneven hay fields. Factor in the transport width of just 9’ 6” and there’s no denying that the RA110CR is one capable rake.
Features
- Safe Transport: With Independent Wing Cylinder lockouts, transport is safe and easy on the road and through narrow gates or openings. Transport width ranges from 9'2" to 9'6".
- Individual Rake Wheel Suspension: Individual Rake Wheel Suspension is ideal for rough and uneven hay fields allowing each wheel to act independently and follow ground contour.
- Drawbar Height: Adjustable for 12 different tractor drawbar heights to ensure proper working angles of the rake wheels.
- Kicker Wheel Options: Single and Dual Kicker Wheel options are used to move material that would otherwise stay in place.
Specifications
- Transport Length ft. (m): 21' 2" (6.5)
- Working Length (Max.): 21' 6" (6.6)
- Transport Width ft. (m): 9' 6" (2.9)
- Transport Height ft. (m): Min: 8' (2.4) Max: 8' 9" (2.7)
- Working Width ft. (m): Min: 18' 4" (6) Max: 20' 4" (6.2)
- Windrow ft. (m): Min: 34" (.8) Max: 72" (1.8)
- Working ft. (m): 55" (1.4)
- Weight lbs. (kg): 1640 (734)
- Wing Spread: N/A
- Hydraulic Circuits: closed-center or open-center, one remote
- Hydraulic Power Required: 1800psi, 10gpm
- Minimum PTO Horsepower Required HP/KW: 40 HP
Additional information
| GENERAL | Working Width Min: 18 ft 4 in, Max: 20 ft 4 in |
|---|
