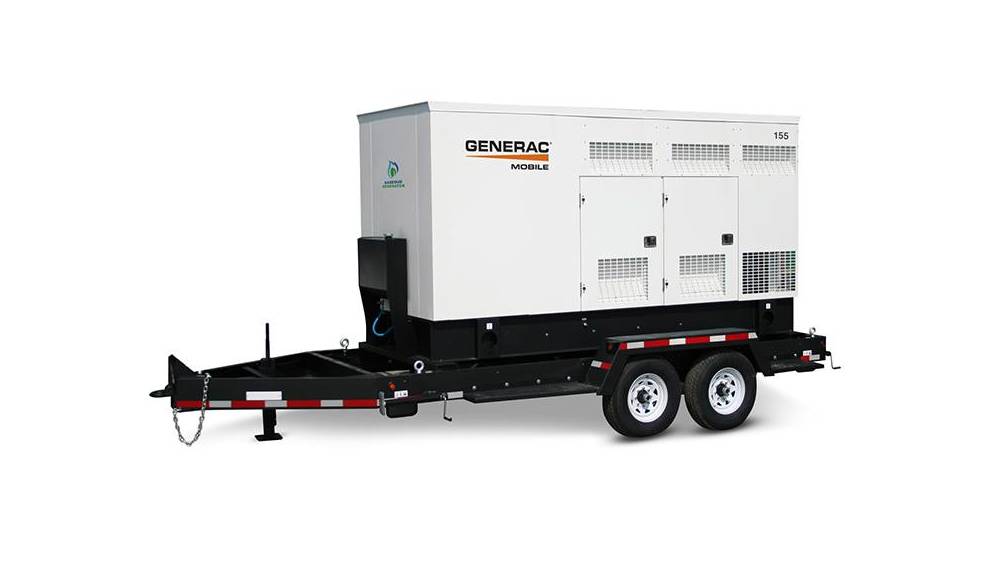

2024 Generac MGG155N2 Gaseous Generator
$0.00
About Generac Mobile Products Gaseous Generators
Our gaseous generators provide cost effective power by using well gas byproduct as fuel. One gaseous generator can save an oil and gas site as much as $200K per year in diesel costs. And natural gas powered generators are seeing more use outside the oil field as well.
They come standard with a flexible engine management system, digital controller with paralleling capabilities, a durable, custom built trailer, a built-in fuel/water separator; and a sound attenuation package.
Our gaseous generators operate on well gas, natural gas or propane and are ready to be deployed for use as prime or backup power for a number of oil field operations, from well pumps to man camps. If you have off the grid power needs we have a product to fit your needs.
- Flexible engine management system
- Digital controller with paralleling capabilities
- Durable custom-built trailer
- Built-in fuel/water separator
- Sound attenuation package
- Isolated Mounted Engine Supports
- Paper Element Air Filter with Safety Cartridge
- Fixed Speed Fan Drive
- Spin On Cartridge Oil Filter
- Oil Drain Extension
- Factory Filled Oil and Coolant
- Full Flow Gear Pump
- Oil Make-Up System with Floating Valve
- Oil Make-Up Tank 60 L
- Capable of Operating at 122 °F (50 °C) Ambient
- 50/50 Coolant (50% Ethylene Glycol)
- UV/Ozone Resistant Hoses
- Closed Coolant Recovery System
- Automatic Changeover NG/LP
- Fuel Shutoff Solenoid
- Fuel Line NPT Connection
- Battery Disconnect Switch
- Solenoid Activated Starter Motor
- Full Load Capacity Alternator
- Four Pole
- 2/3 Pitch
- Class H Insulation
- Rotor Dynamically Spin Balanced
- Permanent Magnet Generator (PMG) Excitation System
- Connection Lugs
- Heavy Gauge Aluminum Sound Attenuated Enclosure
- Skid-Mounted
- High Performance Sound Absorbing Material
- Gasketed Doors
- Upward Facing Discharge Hood (Exhaust)
- Stainless Steel Hinges, Door Latches, and Exterior Hardware
- Interior Cabinet Light
- White Polyester Powder Paint-UV and Fade Resistant
- Fully Lockable Enclosure
- Exterior Emergency Stop Switch
- Multi Lingual Operating and Safety Decals
- Document Holder with Owner’s Manual – Includes AC and DC Wiring Diagrams
- Two 7,000 lb (3,175 kg) Axles
- Electric Brakes
- 3 in (76.2 mm) Pintle Ring
- Transportation Tie Downs
- Safety Chains with Spring Loaded Safety Hooks
- Tongue Jack with Footplate – 10,000 lb (4,536 kg)
- Tires: 16 in (40.64 cm), 10-ply, Tubeless
- Dot Approved Tail, Side, Brake, and Directional Lights; Recessed Rear Lights
- Illuminated License Plate Holder
- Plug Adapter—Flat 4 to Round 7 Spade
- 1 Year or 2,000 Hours
- Make: PSI
- Cylinder #: 6
- Type: Inline
- Displacement: in³ (L): 494 (8.1)
- Bore: in (mm): 4.37 (111)
- Stroke: in (mm): 5.47 (138)
- Compression Ratio: 10.5:1
- Intake Method: Turbocharged/Aftercooled
- Connecting Rods: Steel Alloy
- Cylinder Heads: Cast Iron OHV
- Cylinder Liners: Cast Iron Alloy
- Ignition: Electronic
- Piston Type: Aluminum Alloy
- Crankshaft Type: Forged Steel Alloy
- Lifter Type: Solid
- Intake Valve Material: High Temperature Steel Alloy
- Exhaust Valve Material: High Temperature Steel Alloy
- Hardened Valve Seats: High Temperature Steel Alloy
- Governor: Electronic
- Oil Pump: Gear
- Oil Filter Type: Twin Full Flow
- Engine Oil Capacity: qt (L): 25 (24)
- Cooling System Type: Pressurized Closed Recovery
- Fan Type: Pusher
- Fan Diameter: in (mm): 27.9 (711)
- Fuel Type: Natural Gas / Wellhead / LP
- Carburetor: Down Draft
- Secondary Fuel Regulator: EPR
- Fuel Shutoff Solenoid: Standard (Dual)
- Engine Operating Fuel Pressure - in H20 (kPa): 7-11 (1.7-2.7)
- Inlet Gas Supply Pressure: TBD
- System Voltage: System Voltage
- Battery Charger Alternator: Battery Charger Alternator
- Battery Size: Battery Size
- Battery Voltage: Battery Voltage
- Ground Polarity: Ground Polarity
Additional information
| ENGINE | Displacement 494 cu. in. (8.1 L) |
|---|---|
| DIMENSIONS | Length 169 in. (4.29 m) |
