2024 Generac MGG210N2 Gaseous Generator

$0.00

Category: Brand:

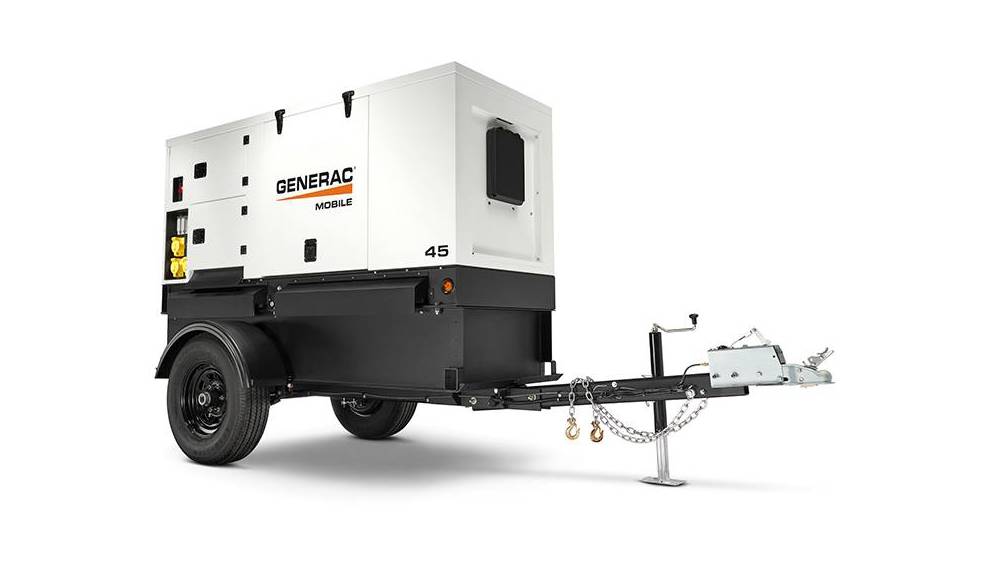

Quiet, easy power - the MMG45IF4 Diesel Generator

The Generac Mobile MMG45IF4 delivers a lot of power in an innovative, easy to use and easy to maintain compact package. The unit was specifically designed with a cabinet that has the features customers want to be as maintenance free and easy to use as possible. And it’s supported by a Tier 4 engine with a long run time and the ability to easily select the power output needed. All of this is encapsulated in a sound attenuated, rust-proof, aluminum enclosure so you can use the unit anywhere power is needed – at an event or on the job.

Powerful and durable
  • EPA Tier IV Turbocharged, after-cooled diesel engine
  • 3 position selector switch for power output flexibility
  • Long-run time – 27 hours
  • Rust-proof, aluminum enclosure
Easy to use
  • Simplified Controller- Deep Sea® DSE7310 with an easy-to-read status screen
  • A powerful processor with intuitive operation and real time operational data
  • Programmable controller providing flexible application capabilities
  • Aluminum, sound attenuated enclosure – 65dB (A)
Safe
  • 13 warning and shutdown features
  • Lockable control box door with diagnostics window
  • Lockable lug box with safety switch
  • Emergency stop switch located on outside of enclosure
  • Central lifting point
  • 120% Containment
Standard Features - Engine System
  • Isuzu® 4LE2XAGV01
  • 4 Cylinder
  • Turbocharged & Aftercooled
  • 134 in3 (2.2 L) Displacement
  • EPA Tier 4 Final Approved
  • Power @ 1,800 rpm – hp (kW): Prime: 57 (42.8);Standby: 63.7 (47.5)
  • Approved for use with Hydrotreated Vegetable Oil (HVO) fuels compliant with ASTM D975 or EN 15940
  • Paper Element Air Filter
  • Electronic Isochronous Governing
  • Fixed Speed Fan
  • One Spin-on Cartridge Oil Filter
  • Oil Drain Extension
  • Two Fuel Filters
  • One 12 V, 720 CCA, Wet Cell Battery
Standard Features - Cooling System
  • Capable of Operating at 120 °F (49 °C) Ambient
  • 50/50 Coolant (50% Ethylene Glycol)
  • Coolant Drain Extension
Standard Features - Fuel System
  • Polyethylene Fuel Tank
  • Fuel Tank Capacity – gal (L): Total: 100 (379); Usable: 90 (341)
  • Runtime @ 75% Load: 36 hr
  • 110% Containment - engine fluid (oil & coolant) and fuel
  • Padlockable Fuel Cap
Standard Features - Controls System
  • Deep Sea Electronics® 7310 MKII Controller
  • 3-Position Voltage Selection Switch
  • 225 A Main Circuit Breaker (MCB), Manual, with Shunt Trip
  • Individual Convenience Receptacle Circuit Breakers
  • Emergency Stop Switch
  • Battery Disconnect Switch, Padlockable
  • 2-Wire Remote Start/Stop Contacts
Standard Features - Alternator System
  • 60 Hz Engine-Driven Alternator
  • SUPERSTART Alternator: Brushless, 4 Pole, 2/3 Pitch, Class H Insulation, Corrosion Protection
  • Marathon Electric® PM500 AVR
  • Shunt Excitation System
Standard Features - Power Distribution
  • Connection Lugs
  • Convenience Receptacles: Two 120 V, 20 A, GFCI Duplex (NEMA 5-20R); Three 120/240 V, 50 A, 3 Pole, 4 Wire
  • Twistlock (CS6369)
Standard Features - Enclosure
  • Aluminum, Sound Attenuated, Insulated and Baffled
  • UV and Fade Resistant, High Temperature Cured, White Polyester Powder Paint
  • Central Lifting Point
  • Fully Lockable Enclosure
  • Multi Lingual Operating and Safety Decals
  • Document Holder with Owner's Manual - includes AC and DC wiring diagrams
  • Control Panel Lights
  • Interior Lights
Standard Features - Trailer
  • Hydraulic Surge Brakes
  • 2 in. (50.8 mm) Ball Hitch
  • Single 6,000 lb. (2,722 kg) Axle
  • 15 in. Tires, 6 Ply, Tubeless
  • 2,000 lb. (907 kg) Tongue Jack with Footplate
  • Safety Chains with Spring Loaded Safety Hooks
  • Transportation Tie Downs
  • Plug Adapter, Round 7 Blade (SAE J2863)
  • DOT Approved Tail, Side, Brake, and Directional Lights
Standard Features - Warranty
  • 2 year Limited or 2,000 Hours: Unlimited Hours Covered in First Year
Engine Specifications - General
  • EPA Emissions Compliance Tier: 4 Final
  • After Treatment System: DOC
  • Cylinders – Qty: 4
  • Type: In-Line
  • Displacement – in3 (L): 134 (2.2)
  • Bore – in (mm): 3.35 (85)
  • Stroke – in (mm): 3.78 (96)
  • Compression Ratio: 17.6:1
  • Intake Air Method: Turbocharged & Aftercooled
  • Engine: Governing
  • Governor: Electronic
  • Frequency Regulation (Steady State): ±2%
  • Oil Pump Type: Gear Driven
  • Oil Filter Type: Spin-On Cartridge, Full Flow
  • Crankcase Capacity – qt (L): 12 (11.4)
Engine Specifications - Engine Governing
  • Governor: Electronic
  • Frequency Regulation (Steady State): 2%
Engine Specifications - Lubrication System
  • Oil Pump Type: Gear
  • Oil Filter Type: Spin-On Cartridge
  • Crankcase Capacity - qt (L): 34.3 (32.5)
Engine Specifications - Cooling System
  • Cooling System Type: Radiator and CAC
  • Water Pump Type: Belt Driven
  • Fan Type: Pusher
  • Fan Speed – rpm: 2,016
  • Fan Diameter – in (cm): 19.0 (48.3)
  • Cooling System Capacity – qt (L): 18 (17)
Engine Specifications - Fuel System
  • Fuel Type: Ultra Low Sulfur Diesel
  • Fuel Specifications: EN 590 / ASTM D975
  • Fuel Filtering – µ: 5
  • Fuel Inject Pump – Make (Model): Denso (HP3)
  • Fuel Pump Type: Engine Gear Driven
  • Injector Type: Electronic
  • Engine Type: Direct Injection High Pressure Common Rail
  • Fuel Supply Line Diameter– in (mm): 0.375 (9.5)
  • Fuel Return Line Diameter– in (mm): 0.375 (9.5)
Engine Specifications - Engine Electrical System
  • System Voltage – VDC: 12
  • Battery Charger Alternator – VDC (A): 12 (50)
  • Battery Size – CCA: 720
  • Battery Quantity: 1
  • Ground Polarity: Negative (-)

Additional information

ENGINE

Engine Type Isuzu® 4LE2XAGV01 4 Cylinder
Displacement 134 cu. in. (2.2 L)
DIMENSIONS

Length 152 in. (3.81 m)
Width 58 in. (1.45 m)
Height 83 in. (2.11 m)
Weight 3,363 lb. (1,525 kg)
OTHER

Fuel Tank Capacity 160 gal. (606 L)
