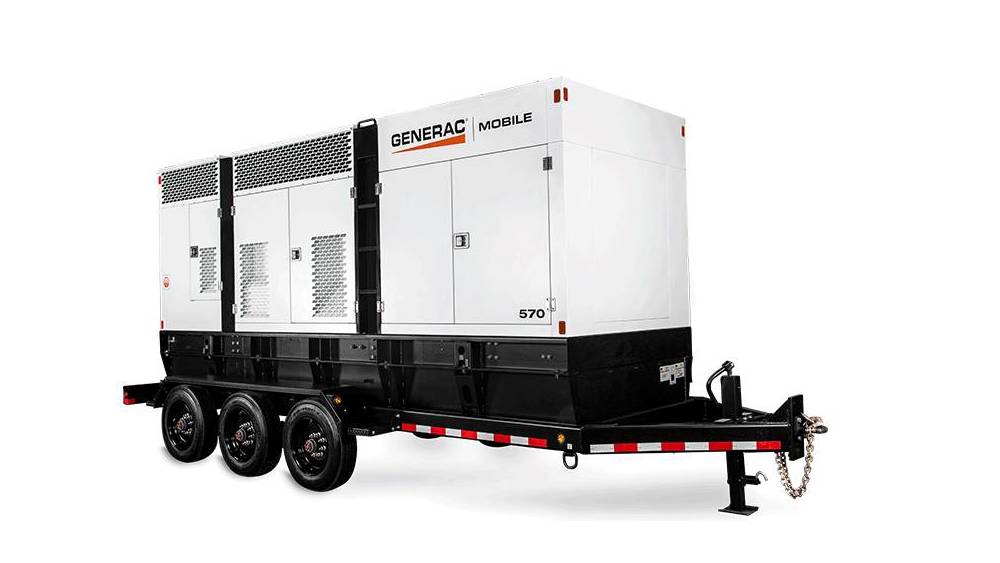

2024 Generac MDE570 Diesel Generator

$0.00

Category: Brand:

Energy that is Rental Ready

Delivers 570 kVA prime power that is reliable, easy to maintain and versatile. The heavy duty engine has been proven in a variety of applications: remote job sites, heavy duty construction, extreme weather environments. The steel, sound-attenuated enclosure provides quiet operation and is durable for a long-lasting, attractive appearance.

Easy To Use
  • Rental ready
  • Intuitive controls
  • Load Management System
  • Constant worksite power
  • Durable steel frame, fuel tank, enclosure and lift structure
  • Engine fluid containment
Powerful
  • Perkins 9.3 L engine. Learn about Perkins system engine technology for load management here.
  • 480, 240 and 208 V 3-phase output and 120/240 V 1-phase convenience repticles
  • Deep Sea electronics controller
  • Engine exhaust Temperature Management (ETM) wet stacking mitigation technology
  • Constant power at all voltages
Options
  • Alternators for increased motor starting and 600V capabilities
  • Trailer and skid configurations
  • Fuel tank containment
  • Paralleling
  • Extreme cold weather operation features
  • Spare tires and storage boxes
Standard Features - Engine System
  • Perkins® 2806F-E18TAG1
  • 6 Cylinder
  • Turbocharged & Aftercooled
  • 1,104 in³ (18.1 L) Displacement
  • Power @ 1,800 rpm – hp (kW): Prime: 670 (500), Standby: 744 (555)
  • Paper Element Air Filter
  • Electronic Governing
  • Variable Speed Fan
  • Two Spin On Cartridge Oil Filters
  • Oil Drain Extension
  • One Fuel / Water Separator
  • Two Fuel Filters
  • Engine Fluid (Oil, Coolant, & DEF) Containment: 110% Containment, Engine Fluid Detection
  • Two 12 V, 950 CCA, Wet Cell Batteries
Standard Features - Cooling System
  • Capable of Operating at 110 °F (43 °C) Ambient (at Prime)
  • 50/50 Coolant (50% Ethylene Glycol)
  • Coolant Drain Extension
Standard Features - Fuel System
  • Single Wall Fuel Tank
  • UN31A Certification
  • Fuel Tank Capacity – gal (L): Total: 760 (2,876), Usable: 671 (2,540)
  • Runtime @ 75% load: 27.1 h
  • DEF Tank Capacity – gal (L): Total: 28.3 (107.1), Usable: 24.7 (93.5)
  • Padlockable Fuel & DEF Tank Caps
Standard Features - Control System
  • Deep Sea Electronics® 8610 MKII Controller (NonParalleling)
  • 1,600 A Main Circuit Breaker (MCB), Manual
  • Individual Convenience Receptacle Circuit Breakers
  • Emergency Stop Switch
  • Hour Meter
  • Lockable Battery Disconnect
  • 2-Position Linkboard with Voltage Selection Switch
Standard Features - Alternator System
  • 60 Hz Engine-Driven Alternator
  • Standard Alternator Leroy SomerTM LSA 47.2 M7: Brushless, 4 Pole, 2/3 Pitch, Class H Insulation, Corrosion Protection
  • Deep Sea Electronics® A109 Digital AVR
  • Permanent Magnet Generator (PMG) Excitation System
Standard Features - Power Distribution
  • Connection Lugs
  • Convenience Receptacles: Two 120 V, 20 A, GFCI, Duplex Receptacles (NEMA 5-20R),Three 120/240 V, 50 A, 3 Pole, 4 Wire Twistlock Receptacles (CS6369)
  • Buck Transformer
Standard Features - Enclosure
  • All Steel Construction
  • UV and Fade Resistant White Polyester Powder Paint
  • Central Lifting Point
  • 4 Point Lift
  • Fully Lockable Enclosure
  • Multi Lingual Operating and Safety Decals
  • Document Holder with Owner’s Manual – Includes AC and DC Wiring Diagrams
  • Control Panel Lights
Standard Features - Trailer
  • Electric Brakes
  • 3 in. (76.2 mm) Pintle Ring
  • Three 10,000 lb (4,535 kg) Axles
  • 17.5 in. Tires, Tubeless, 10 ply
  • Heavy Duty Trailer Jack
  • Safety Chains with Spring Loaded Safety Hooks
  • Transportation Tie Downs
  • Plug Adapter, Round 7 Spade (SAE J2863)
  • DOT Approved Tail, Side, Brake, and Directional Lights
Standard Features - Warranty
  • 2 year Limited or 2,000 Hours: Unlimited Hours Covered in First Year
Engine Specifications - General
  • Make (Model): Perkins (2806F-E18TAG1)
  • EPA Emissions Compliance: Tier 4 Final
  • After-Treatment System: EGR, DOC, SCR, & DPF
  • Cylinders - Qty: 6
  • Type: In-Line
  • Displacement - in³ (L): 1,104 (18.1)
  • Bore - in (mm): 5.7 (145)
  • Stroke - in (mm): 7.2 (183)
  • Compression Ratio: 16.0:1
  • Intake Air Method: Turbocharged & Aftercooled
Engine Specifications - Engine Governing
  • Governor: Electronic
  • Frequency Regulation (Steady State): 0.75%
Engine Specifications - Lubrication System
  • Oil Pump Type: Gear
  • Oil Filter Type: Spin-On Cartridge
  • Crankcase Capacity - qt (L): 78.2 (74)
Engine Specifications - Cooling System
  • Cooling System Type: Water Cooled
  • Water Pump Type: Engine Gear Driven
  • Fan Type: Pusher
  • Fan Speed - rpm: Variable Speed Clutch
  • Fan Diameter - in (mm): 46 (1,168)
  • Coolant System Capacity - gal (L): 16.7 (63.2)
Engine Specifications - Fuel System
  • Fuel Type: Ultra Low Sulfur Diesel
  • Fuel Specifications: ASTM D975 D2
  • Fuel Filtering - µ: Primary: 10 Final*: 4
  • Fuel Pump Type: Engine Gear Driven Lift Pump
  • Injector Type: Electronically Controlled Unit Injector (MEUI)
Engine Specifications - Engine Electrical System
  • System Voltage - VDC: 24
  • Battery - CCA: 950
  • Battery - V (Qty): 12 (2)
  • Ground Polarity: Negative (-)

Additional information

ENGINE

Displacement 567.52 cu. in. (9.3 L)
OTHER

Fuel Tank Capacity 425 gal. (1608 L)
Run Time 25.2 hours
