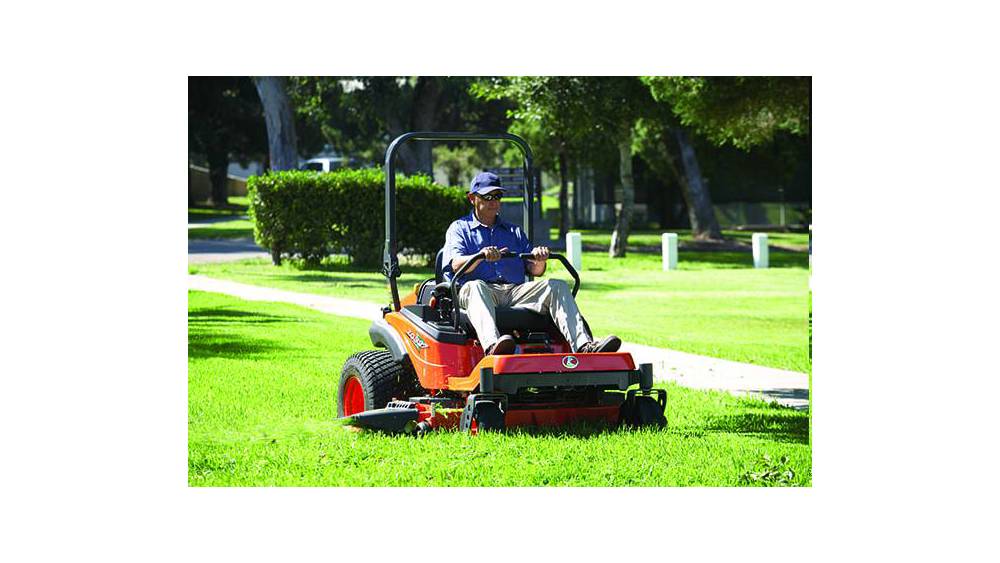

2025 Kubota ZG327PA-60
$0.00
Designed with city and commercial operations in mind, the Kubota ZG327 grants you the power you need to put your best foot forward. From the fully flat operator platform to the adjustable, high back deluxe suspension seat, the ZG327 is committed to comfort, just as much as it’s committed to performance. A high-performance HST works alongside the 26 horsepower engine, letting you stay in control and mow at speeds up to 10.6 mph. Choose between a rear or side discharge chute to control where your clippings go after the three blades underneath the pro commercial fabricated deck have had their fun. Factor in the 12.7 gallon fuel tank, and you’ve got yourself a mower ready to help you reach greater heights. The Kubota ZG327 has the tools. Are you ready to take on the challenge?
- Comfortable and Easy Operation: Full-flat operator platform; Adjustable, high-back deluxe suspension seat with armrests, lumbar support, weight adjustment and more for a custom fit; 1/4" increment cutting height adjustment with the simple twist of a dial; Adjustable speed control levers; Hands-free parking brake; Large, 12.9 gal fuel tank for more efficient working
- High-performance HST Transmission: For superior durability, the ZG Series features an integral-type, twin-hydrostatic transmission. Except for an occasional fluid change, its hermetically-sealed structure requires no maintenance or belts to change.
- Hands-Free Hydraulic Lift: Kubota's advanced hydraulic deck lift pedal system allows the operator to easily raise and lower the deck with foot pedals, so easy access and quick response is never a problem.
- Easy Maintenance: Maintenance has never been so easy. For interior maintenance, the sturdy seat panel is simply lifted up for clear access and an unobstructed view. By opening the hood, it's easy to perform routine maintenance - like adding oil - in mere seconds. Plus, there's a maintenance hatch on the full-flat platform, with a built-in storage pocket for easy access to the upper mower, gearbox case and universal joint parts. Kubota’s innovative two-pin, tilt-up, maintenance lift feature* allows the front of the ZG300 Series to be easily raised without having to remove the mid-mount mower, making routine maintenance underneath the mower quick and simple. It’s like having a built-in jack right there when you need it.
- Front Axle: The ZG300 Series features a rigid front axle helps deliver an even cut while mowing rough terrain.
- Model: Kubota KGZ770-E2-MA1
- Type: Gasoline, Air Cooled V-Twin with Heavy-Duty Canister Air Filter
- Engine Max. Horsepower (gross): 26.0 HP @ 3600 RPM
- Total Displacement: 46.9 cu. In. (768 cc)
- Starting System: Key Switch
- Overall Length: 87.8 in. (2230 mm)
- Overall Width w/ Mower: 75.2 in. (1911 mm)
- Overall Width w/o Mower: 57.5 in. (1460 mm)
- Overall Height w/ ROPS (upright): 75.4 in. (1915 mm)
- Overall Height w/ ROPS (folded): 61.2 in. (1555 mm)
- Wheelbase: 55.5 in. (1410 mm)
- Front Tread: 38.4 in. (975 mm)
- Rear Tread: 45.3 in. (1150 mm)
- Front Tire Size: 15 x 6.0 - 6 (Non Flat)
- Rear Tire Size: 26 x 12.0 - 12
- Weight w/ Mower, w/o Fuel: 1565 lb. (710 kg.)
- Transmission System: 2-HST-2 w/ Gear Reduction
- Speed Control: 2-Hand Levers
- Travel Speed Range (forward): 0 - 10.6 mph (0 - 17.0 km/h)
- Travel Speed Range (reverse): 0 - 5.3 mph (0 - 8.5 km/h)
- Braking System: Wet Multi Discs, Foot Applied, Released
- Type: Shaft Drive
- Clutch Type: Hydraulic Independent PTO Clutch with Wet Multi Discs
- PTO Brake: Wet Single Disc
- Model: RCK60P-327Z
- Mower Deck Type: Pro Commercial Fabricated Deck
- Mower Lift System: Hydraulic
- Deck Depth: 6.5 in. (165 mm)
- Belt Type: Multi Belt
- Deck Steel Thickness: 0.17 in. (4.2 mm)
- Anti Scalp Roller: Rigid
- Cutting Width of Mower: 60 in.
- Number of Blades: 3 blades
- Cutting Height: 1 in. - 5 in. (1/4 in. Increments)
- Mounting System of Mower: Quick Joint, Parallel Linkage
- Blade Tip Speed: 18100 FPM
- Engine Stop System: Key Stop
- Fuel Tank Capacity: 12.7 gal (48.0 L)
- Battery: UIL-10 (12V, RC: 22 min, Cca: 300, CA: 365)
- Alternator Capacity: 13.4 A @ 12 V
- Hour Meter: Standard
- Fuel Gauge: Electric
Power (HP) Specifications for individual gasoline engine models are rated pursuant to SAE J1940 based on gross outputs testing performed in accordance with SAE J1995 without the air cleaner and muffler.
Additional information
| ENGINE | Engine Manufacturer Kubota |
|---|---|
| GENERAL | Transmission 2-HST-2 w/ Gear Reduction |
| DECK | Deck Size 60 in. |
