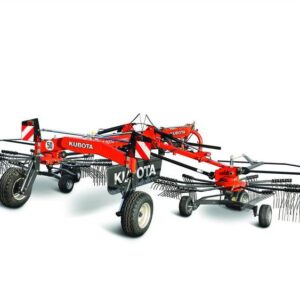

2025 Kubota RA212CR
$0.00
Designed with low horsepower requirements and dominant performance in mind, the Kubota RA212CR lets you take your raking jobs to even greater heights. Individual rake wheel suspension ensures your rake covers rough and uneven fields effortlessly. You can even extend the telescoping wing arms an additional 1.5 feet or adjust the hitch height to make sure you’re covering the most ground. The powerful 25’ working width, 25’ 4” working length and surprising 9’ 3” transport width all bring you the versatility and coverage that you need in a rake. It’s time to experience the Kubota difference with the RA212CR!
Features
- Safe Transport: With Independent Wing Cylinder lockouts, transport is safe and easy on the road and through narrow gates or openings. Transport width ranges from 9'2" to 9'6".
- Individual Rake Wheel Suspension: Individual Rake Wheel Suspension is ideal for rough and uneven hay fields allowing each wheel to act independently and follow ground contour.
- Telescoping Wing Arms: Telescoping Wing Arms allow for an additional 1.5 ft. of adjustment by utilizing the jack stand.
- Drawbar Height: Adjustable for 12 different tractor drawbar heights to ensure proper working angles of the rake wheels.
- Height Adjustment: Height adjustment holes allow the hitch to be adjusted from a height of 13.5" to 23.75".
- Kicker Wheel Options: Single and Dual Kicker Wheel options are used to move material that would otherwise stay in place.
Specifications
- Transport Length ft. (m): 24' 10" (7.7)
- Working Length (Max.): 25' 4" (7.7)
- Transport Width ft. (m): 9' 3" (2.8)
- Transport Height ft. (m): Min: 8' 4" (2.5) Max: 9' 11" (3)
- Working Width ft. (m): Min: 21' (6.4) Max: 25' (7.6)
- Windrow ft. (m): Min: 36" (.9) Max: 89" (2.3)
- Working ft. (m): 55" (1.4)
- Weight lbs. (kg): 1970 (893)
- Wing Spread: One hole changes windrow and working width 6 (15) to 7 (18)
- Hydraulic Circuits: closed-center or open-center, one remote
- Hydraulic Power Required: 1800psi, 10gpm
- Minimum PTO Horsepower Required HP/KW: 50 HP
Additional information
| GENERAL | Working Width Min: 21 ft Max: 25 ft |
|---|
