2025 Kubota DM2032
$0.00

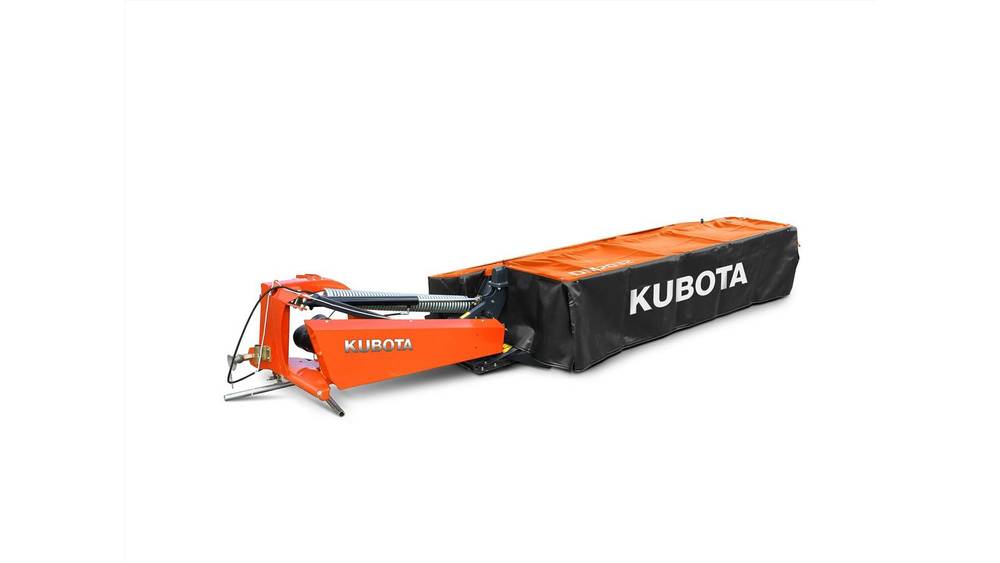

The Kubota DM2032 showcases just what it means to be a Kubota with features like three counter rotating bladed discs, non-stop breakaway system and flexible suspension.Vertical folding makes transporting this disc mower to and from the field easy, minimizing the wear and tear with a fast lift hydraulic system.. Factor in the 10’ 6” working width and it’s hard to beat the range that the DM2032 brings you.
Features
- Flexible Suspension: Offering a flexible suspension, the DM2000 series is exceptionally well suited for work on slopes and in hilly conditions.
- Fully Welded Cutterbar: The fully welded Kubota cutterbar with overlapping C-channels makes for a stiff and strong design, ensuring a high level of durability. The cutterbar's design, with machined gears and large bearings along with low oil requirements, allows for a low working temperature for efficient oil cooling and lubrication of the entire cutterbar.
- Non-Stop Breakaway: When you hit an obstacle, the non-stop breakaway system will be activated and swing the machine backwards and over the obstacle and then return it to the original working position. No need to stop - no time lost.
- Fast Lift on Headlands: The mower is easily lifted via a hydraulic cylinder without activating the tractor's 3-point linkage. This causes less wear on the tractor and the machine, as the PTO stays in the same position, minimizing vibrations in the transmission.
- Vertical Transport Position: When in transport, the mowers are folded to a vertical position well behind the tractor. The center of gravity is close to the tractor, which ensures excellent weight distribution and transport stability.
- Counter-Rotating Three-Bladed Discs: With three blades per disc Kubota mowers are constantly cutting. This means a third less load per blade; an even load on the drive; smoother power usage; and produces an even, cleanly cut stubble.
Specifications
- Cutting Width ft. (m): 10' 6" (3.2)
- Weight lbs. (kg): 1510 (685)
- Transport Width ft. (m): 4' 7" (1.4)
- Hitch (CAT): 2
- Pin Hitch: 540
- PTO RPM: 55
- Minimum PTO Horsepower Required HP/KW: 55/40
- Number of Disc and Knives: 10/24
- Remotes: 1
- Cutterbar Operating Angle: -35/+35
- Stubble Height in. (mm): 0.75"-4.0" (19-102)
- BreakAway: Not Avaliable
- Non-Stop BreakAway: Standard
- Overrun Clutch: Standard
- Swath Board (RH/LH): Standard
- Swath Rollers (RH/LH): Optional/Not Available
- High Skids +20/+40/+80 mm: Optional
- Lighting Kit: Optional
Additional information
| GENERAL | Working Width 10 ft 6 in |
|---|
