2025 Exmark TTX730EKC52400 52″ Kohler ECV730
$11,837.00

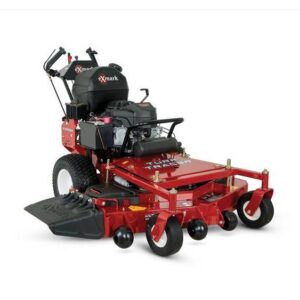

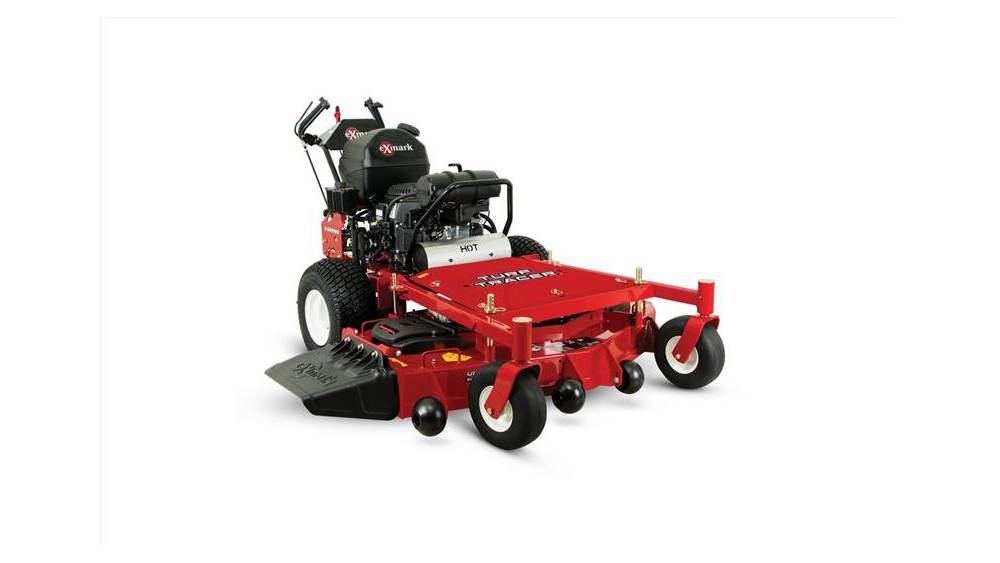

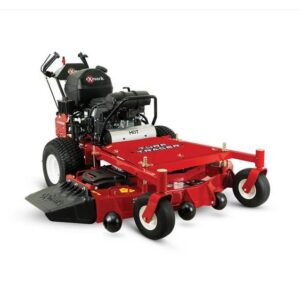

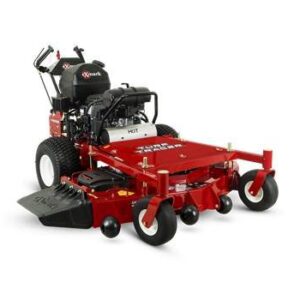

Discover the Exmark Turf Tracer X-Series Mower
By virtually any measure, the Turf Tracer X-Series represents the definitive, full-featured hydro mower. Whether you choose the 52- or 60-inch cutting deck, the UltraCut™ Series 4 with splined spindle blade driver is up to the toughest jobs. As are the X-Series engines—Kohler® EFI. Ground speeds up to 6.75 mph, and up to 2.25 in reverse, also rank the Turf Tracer X-Series among the most productive mowers in its class.
Features
- Patented Enhanced Control System (Ecs): Recent University Tests Showed Landscape Professionals Prefer Our Control System To All Others On The Market.
- Floating Deck: Full-Floating Ultracut™ Deck. Side Discharge Standard, With Molded Discharge Chute And Option To Bag Or Mulch.
- Superior Air Filtration: This Series Comes Standard With Heavy-Duty Canister Air Filtration Systems For Longer Engine Life, More Efficient Performance And Simple Maintenance.
- Clutch Performance: A Large-Capacity, Electromagnetic Pto Clutch Provides Excellent Durability For Extra-Long Life.
- Superior Cut Quality: Ultracut™ Series 4 Deck
- Deck Options: With The Turf Tracer X-Series, You Can Choose Up To A 60-Inch Deck.
Equipment
- Upc: 193308240985
- Starter: Electric
- Steering Control: Hydro Drive With Enhanced Control System (Ecs), Forward/Reverse, Left/Right Or Zero-Turn.
- Front Caster Tires: 11 X 4.0-5, Smooth Tread, Semi-Pneumatic.
- Drive Tires: 18 X 8.5-8, 4-Ply Turf Master®
- Safety Package: Operator Presence Controls (Opc). Operator Must Have Speed Control Lever In Neutral And Blades Disengaged To Leave Operator’S Position Without Stopping Engine
- Parking Brake: Lever-actuated mechanical compression.
- Electrical: 12-Volt Battery With 20-Amp Alternator.
- Standard Features: Enhanced Engine Hour Meter
Power Components
- Engine Brand: Kohler
- Transmission Speeds: Infinitely Variable
- Transmission Brand: Hydro-Gear
- Engine Model: Ecv730
- Engine Displacement: 747
- Engine Series: Command™ Efi
- Fuel System: Electronic Fuel Injected
- Transmission: Hydrostatic
- Speed: Infinitely Variable Speed Selection From 0– 6.75 Mph Forward, 0–2.25 Mph Reverse
- Drive: Hydro-Drive
- Engine Spec: 3051
- Engine Speed: 3,600 Rpm
- Air Filter: Heavy-Duty Canister Air Filtration System
- Fuel Capacity: 5-Gallon Single Fuel Tank With Single Fill Location
- Drive Description: Twin Hydro-Gear variable-displacement pumps and twin high-efficiency Parker/Ross wheel-drive motors with 1" tapered shafts.
- Fuel Type: Gas EFI
- Pto Engagement: Electromagnetic 200 ft-lbs clutch
- Drive Wheel Release: Allows unit movement without engine running.
- Fuel Indicator: None
- Deck Lift: Manual Lift With Hairpin From Hole To Hole For Position Adjustment.
- Carb Compliant: No
Decks
- Deck Style: Floating Deck
- Deck Style Description: Full-Floating Ultracut Series 3, Side Discharge Standard, With Molded Discharge Chute And Option To Bag Or Mulch.
- Width / Cutting Deck: 52"
- Deck Construction: 10-Gauge Top That Is Formed And Continuously Seam Welded, 7-Gauge Side Skirt And 7-Gauge Welded Spindle Mounting Locations For Improved Strength.
- Cutting Heights: 1.5" To 4.5" In 0.5" Increments
- Blade Spindles: No Maintenance, Sealed And Non-Greasable Spindles; 7.75"-Diameter Cutter Housing With 25Mm (.98") Diameter Spindle Shaft And Splined Blade Driver.
- Blade Tip Speed: Approximately 18,500 fpm
- Blades: 3 Blades At 18.00" Length
Dimensions
- Width: 64.3"
- Height: 42"
- Curb Weight: 690
- Length: 75.9"
Additional information
| ENGINE | Engine Manufacturer Kawasaki |
|---|---|
| GENERAL | Transmission Hydrostatic |
| DECK | Discharge Type Side Discharge |
