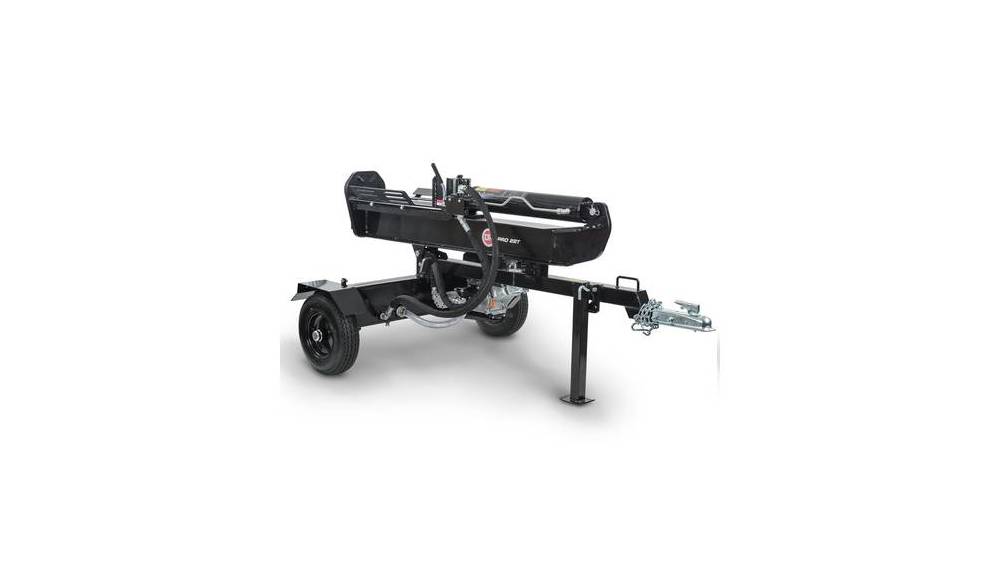

2025 DR Power DR H-V Log Splitter PRO 28T (28-Ton) (WH35028DMN)

$1,699.99

Category: Brand:

PRO 28T (28-Ton)

Split big logs in either horizontal or vertical position (great for logs that are too heavy to lift). Switch configurations in seconds without tools. DR 6.6 HP engine, 12-second cycle time. Road-towable at speeds up to 45 mph.

Dimensions
  • Height: 40.6"
  • Length: 89.5"
  • Shipping Weight: 530 lbs
  • Wedge Height: 7"
  • Weight: 530 lbs
  • Width: 51.3"
  • Shipping Dimensions: 71"L x 27"W x 20"H
  • Working Height: 30"
Engine
  • Air Filter: Dual Element
  • Cooling Methods: Air
  • Displacement: 223cc
  • Engine Type: OHV
  • Horsepower: 6.6 HP
  • Lubrication: Splash
  • Make: DR
  • Number Of Cylinders: 1
  • Oil Capacity: 16.9 oz
  • Oil Type: SAE 30W HD
  • RPM Speeds: 3600
  • Starting Type: Manual
Fuel System
  • Fuel Capacity: 0.8 gal
General
  • CARB Certified: Yes
Hydraulics
  • Hydraulic Flow: 11 gpm
  • Hydraulic Pressure: 4100 PSI MAX
  • Pump: 2 stage / 11-13 gpm (max)
  • Reservoir: 4 gal
Wheels Tires
  • Number of Tires: 2
  • Tire Size: 16" x 4.8" Tube Tires
  • Wheel: Steel Wheel with Taper Roller Bearings
Warranty
  • Engine Warranty: 2 Year Residential, 1 Year Commercial
  • Machine Warranty: 2 Year Residential, 90 Day Commercial
Towing
  • Hitch Type: 2" Ball
  • Max Highway Speed: 45 MPH
  • Towable: Yes
Splitting
  • Average Cycle Time: 12 Seconds
  • Max Log Diameter: 30"
  • Max Log Length: 24"
  • Splitting Force: 28 Tons
Features
  • Easy Conversion: Switching from horizontal to vertical mode (or vice versa) takes only a few seconds. Just slip out a pin, rotate the unit, and re-insert pin to lock it into position. Lets you split those really big rounds without lifting the log onto the beam.
  • DR Engine: Easy-starting DR 6.6 HP engine powers the hydraulic pump. Warranted for 2 years in residential use (90 days commercial).
  • Rugged Hydraulics: Hydraulic pump generates 4100 psi in the cylinder (4.1" bore). Steel piston compression seals provide consistent power...year after year.
  • Easy Towing: A 2" ball hitch comes standard (with safety chains) allowing for road towing at speeds up to 45 mph. Durable, 16" DOT-approved tires. Jackstand folds up for transport.

Additional information

ENGINE

Engine Type OHV
GENERAL

Cycle Time 12 Sec.
