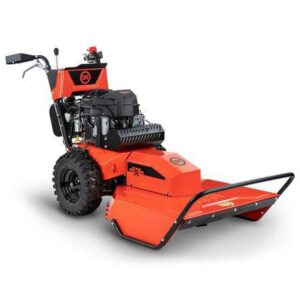

2025 DR Power DR Field and Brush Mower(AT59036KEN)
$5,599.99
XD36 (22 HP)
The XD36 is a commercial duty mower built for the demands of everyday use. Two independent hydrostatic wheel drives and front caster wheels make it easier to handle for long hours of mowing. The 36” wide mowing deck clears acres of overgrown grass quickly and the commercial-grade Kawasaki engine includes a 3-year commercial warranty.
Cutting
- Blade Tip Speed: 18,864 FPM
- Cutting Capacity: 6’ Grass, 8’ Weeds, 3” Saplings
- Cutting Height: 4.25"
- Cutting Width: 36"
- Discharge Location: Side Discharge
Dimensions
- Handlebar Height: 40.5"
- Height: 43"
- Length: 92"
- Shipping Weight: 647 lbs
- Weight: 505 lbs
- Width: 48"
- Shipping Dimensions: 49"W x 50"H x 78"L
Engine
- Air Filter: Dual-Element
- Cooling Methods: Air Cooled
- Displacement: 726cc
- Engine Type: OHV
- Ft Lbs Torque: 39.3 ft-lbs
- Horsepower: 22 HP
- Lubrication: Full Pressure Pump w/Oil Filter
- Make: Kawasaki
- Model: FS651V
- Number Of Cylinders: 2
- Oil Capacity: 67.2oz
- Oil Filter: Yes
- Oil Type: SAE 30W HD
- Starting Type: Electric
Fuel System
- Fuel Capacity: 2 gallon with Fuel Pump
- Inline Fuel Filter: Yes
General
- Accepts Attachments: No
- Assembly: Install Brush Deck & Caster Wheels
- Speed: Reverse: 0mph - 1.9mph | Forward: 0mph - 4.0mph
- Transmission: Hydro Gear ZT1800
Wheel Tires
- Casters: Two 11" foldable front caster wheels
- Rear Tire Size: 18" x 8.50"
- Tread: Directional Tread
Warranty
- Engine Warranty: 3 Year Residential, 3 Year Commercial
- Machine Warranty: 2 Year Residential, 2 Year Commercial
Material
- Deck: 12GA w/7GA Reinforcements
- Frame: 11GA w/7GA Reinforcements
Features
- Commercial Kawasaki Engine: 22 HP 726cc FS651V engine, comes with 3-year Commercial-use engine warranty.
- Independent Hydrostatic Wheel Drive: Provides zero-degree turning radius & effortless maneuverability. Variable speed forward & reverse
- Independent Wheel Drive Levers: Solid cast aluminum design. Dual drive levers let you put power to each wheel with the touch of your fingers
- 36” Brush Deck: Fully welded, 12-gauge brush deck with reinforcing stability bar for added strength. Pivots +/-5° to follow contours of ground. Our optional Heavy duty brush blade is a great addition for extra tough, woody material and can be sharpened on both sides for 2X the blade life.
- Side Discharge: Efficiently clears out mowed material preventing excess accumulation under the extra wide mowing deck.
- On-Board Control Panel: All primary controls located in one location. Integrated maintenance meter for tracking service intervals.
- 11” Front Casters: Never flat folding caster wheels hold the weight of the 36" deck for long mowing sessions and can be flipped back to tackle brush and tougher vegetation.
- Assembled in the USA: Assembled in the USA using foreign and domestic parts. Ships direct from our Wisconsin factory.
Additional information
| Engine | Horse Power 22 HP |
|---|
